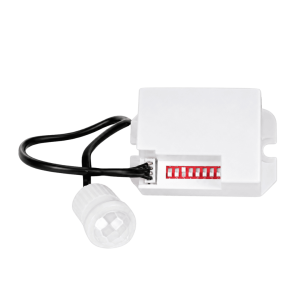

CD-IR-MS
RECESSED MOUNT INFRA-RED OCCUPANCY SENSOR
The CD-IR-MS is a flush-mounted infra-red motion sensor designed for ceiling installation, offering 360° movement detection with adjustable sensitivity, ambient light, and time delay settings for reliable operation.
- Detection diameter of up to 6 metres
- 8 minutes maximum time setting
- 800W rated load
PRODUCT INFORMATION
PRODUCT DESCRIPTION
The CD-IR-MS is an active infra-red motion detector. It senses changes in heat via its Fresnel lens to detect human movement. The sensor can detect even the slightest movement in the detection zone.
The unit is designed to be fitted flush into ceilings. 360° sensing is assured via it’s heat sensors. An 8 minute maximum time setting will reduce the possibility of the lights being extinguished when somebody is present. The sensitivity as well as the ambient light and time delay settings can be adjusted according to the desired operation.
TECHNICAL DATA
Detection Distance: 6 metres
Detection Range: up to 6 metres
Detection Speed: 0.6 – 1.5 ms
Installation Height: 2.2 – 4 meters
Mains Voltage: 230 Vac +/-10% 50Hz
Maximum Ambient Temperature: +70°C
Power Consumption: 0.45W (work) | 0.1W (static)
Rated Load: Fluorescent/ LED: 200W | Resistive: 800W
Time Delay: 5 seconds (min) | 8 minutes (max)
IP Rating: IP20
DIP SWITCH SETTINGS
Select Operation (working light):
- Night only (on position)
- 24 hours (off position)
Select Desired Time Duration:
- 5 seconds | 30 seconds | 1 minute
- 3 minutes | 5 minutes | 8 minutes
