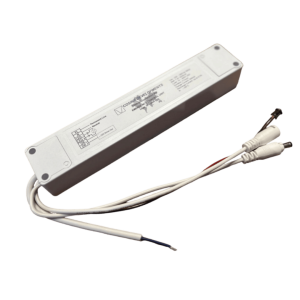

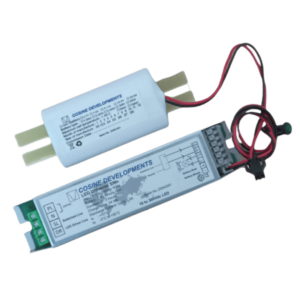

OMEGA CONVERSION KIT
EMERGENCY KIT FOR CURRENT DRIVEN LEDs WITH EXTERNAL DRIVERS
The OMEGA Conversion Kit is an all-in-one emergency lighting solution that provides constant current to LED modules and panels requiring 10–300Vdc. Ideal for downlights and panels, it features built-in lithium-ion batteries for reliable emergency illumination.
- Maintained or non-maintained operation
- Easy installation - plug in & play
- Built-in Lithium-ion battery
- 2 year warranty
- Fast Charging
PRODUCT INFORMATION
PRODUCT DESCRIPTION
The OMEGA Conversion Kit is an all-in-one emergency lighting solution for LED modules and panels requiring 10–300Vdc. Housed in a durable polycarbonate enclosure with plug-and-play connections, it features built-in lithium-ion batteries for reliable emergency illumination and easy installation without a remote battery box.
Please note: The light output on emergency will vary depending on the wattage of lamps used. This unit may only be used in situations where the LED panel/module makes use of an external driver.
The OMEGA Conversion Kit complies with SANS 1464-22
TECHNICAL DATA
Battery type: 7.4V Li-ion
Dimensions: 215 x 42 x 28mm
Emergency lighting duration: 2 – 3 hours
Lamp type: 10 – 300Vdc LED
Mains voltage: 100 -230Vac 50/60Hz
Maximum ambient temperature: +55°C
Output voltage: 10 – 300Vdc
Charge time: Fast Charging 6 hours
