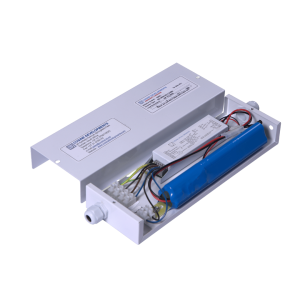

ES40W
UPS SYSTEM FOR 230VAC DEVICE OR LAMPS UP TO 40W
The ES40W supplies 100% light output in emergency operation for most 230V LED or ES lamps up to 40W.
- Emergency kit for 230Vac lamps up to 40W
- 100% emergency lighting output
- 1-3 hours of emergency lighting
- Available in self-testing option
- 5 year warranty on inverter
- 220Vac modified output (DC)
PRODUCT INFORMATION
PRODUCT DESCRIPTION
Discharge currents may vary depending on lamp brands used.
A pilot light indicates that the mains is present.
The unit is housed in a housing, which includes a label of the wiring connection diagram. This unit can be supplied in a remote box as per customer requirement. The battery with this unit is a 11.1V Lithium-ion battery.
Please note: The lamp must be specified prior to ordering this product to confirm it’s compatibility with the load – active circuitry varies from each brand, which could interfere with this emergency product. A safety start circuit is provided that prevents emergency operation until mains is connected – this enables installation without disconnecting or depleting the batteries.
TECHNICAL DATA
Battery Discharge Current: up to 4A
Battery Type: 11.1V Li-ion
Charging Current: >200mA
Charging Indication: Provided
Remote Box Dimensions: 340 x 100 x 43mm
Emergency Lighting Duration: 1 – 3 hours
Lamp Type: any ES | LED lamps or devices up to 40W
Mains Power Consumption: 10VA
Mains Voltage: 100 – 253Vac 50/60Hz
Maximum Ambient Temperature: +70ºC
