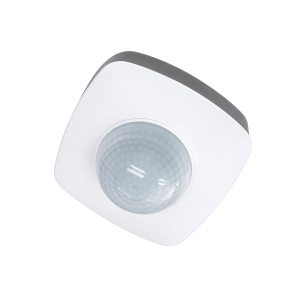

CD-IR-HS
HIGH SENSITIVITY INFRA-RED SENSOR
The CD-IR-HS is a highly sensitive surface-mounted infra-red motion sensor with a wide detection range, high load rating, and advanced time delay capabilities for reliable movement detection.
- +/- 10 second to 30 minutes time delay
- 2 - 6 metre height installation
- 10m radius detection range
- 2000W load rating
PRODUCT INFORMATION
PRODUCT DESCRIPTION
The CD-IR-HS infra-red motion sensor is a highly sensitive surface mount device. The sensor has a high load rating, as well as a wide detection range.
The sensor has multiple detection zones that can pick up the slightest of movements and, with its huge time delay capabilities, the CD-IR-HS stands above most infra-red sensors.
The lux setting allows you to choose at what light levels you want the occupancy sensor to function. The CD-IR-HS can detect night and day, it can be adjusted to max (sun) where the sensor will detect at any light level or you may adjust the light levels for detection as desired by adjusting the “lux” knob.
3 settings are provided:
- Time delay: 10 seconds – 30 minutes
- Sensitivity: 2 – 20m diameter
- Lux: 10 – 2000 lux
TECHNICAL DATA
Day Light Lux Sensing Control: 10 – 2000 Lux
Detection Angle: 360°
Detection Range: 2 – 20m
Installation Height: 2 – 6m
Mains Voltage: 220 – 253Vac 50/60Hz
Maximum Ambient Temperature: +70°C
Rated Load: Incandescent: up tp 2000W | LED: 1000W
IP Rating: IP54
