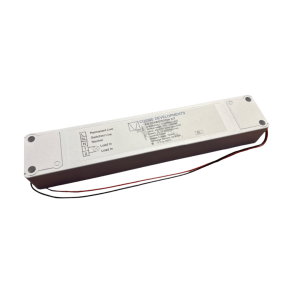

ES CONVERSION KIT
UPS SYSTEM FOR 230Vac DEVICES OR LAMPS UP TO 25W
The ES Conversion Kit provides 1-hour emergency backup for 230Vac loads up to 25W, featuring an integrated Li-ion battery in a compact all-in-one enclosure for easy installation.
- Emergency kit for 230Vac lamps up to 25W
- Polycarbonate enclosure with end caps
- Maintained or non-maintained
- Emergency lighting for 1 hour
- 2 year warranty on inverter
PRODUCT INFORMATION
PRODUCT DESCRIPTION
The ES Conversion Kit provides 1-hour emergency backup for 230Vac loads up to 25W. It is housed in a durable plastic enclosure with end caps, ensuring safe and easy installation. The unit features an integrated Li-ion battery built directly into the enclosure. This all-in-one design eliminates the need for a separate remote battery box.
TECHNICAL DATA
Battery discharge current: 2A
Battery type: 11.1V Li-ion
Charging time: 6 hours
Charging indication: Provided
Dimensions: 215 x 42 x 28mm
Emergency lighting duration: 1 hour
Lamp type: Any ES, LED lamps or loads up to 25W
Mains power consumption: 10VA
Mains voltage: 100 – 253Vac 50/60Hz
Maximum ambient temperature: +45°C
