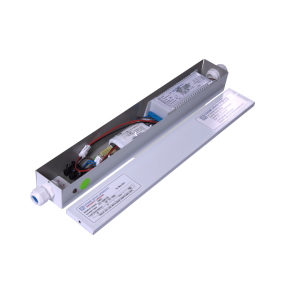

ES10W
EMERGENCY KIT FOR 230Vac LAMPS UP TO 10W
The ES-10W emergency unit provides 100% light output for most 230V LED or ES lamps up to 10W, with integrated battery backup and a safety start circuit for secure installation and operation.
- Emergency kit for 230Vac lamps up to 10W
- 45 minutes to 3 hours emergency duration
- 5 year warranty on inverter
PRODUCT INFORMATION
PRODUCT DESCRIPTION
The ES-10W supplies 100% light output in emergency operation for most 230V LED or ES lamps up to 10W.
Please note, the lamp must be specified prior to ordering this product to confirm it’s compatibility with the load-active circuitry that varies from each brand, which could interfere with this emergency product. The battery provides the power to the unit during emergency mode. A safety start circuit is provided that prevents emergency operation until mains is connected – this enables installation without disconnecting or depleting the batteries.
TECHNICAL DATA
Battery discharge current: up to 2A
Battery type: 7.2V Ni-Cad | 7.4V Li-ion
Charging current: 200mA
Charging indication: Provided
Inverter dimensions: 170 x 45 x 35mm
Remote box dimensions: 400 x 54 x 43mm
Emergency lighting duration: 1 hour – 3 hours
Lamp type: Certain ES or LED lamps up to 10W
Mains power consumption: 10VA
Mains voltage: 100 – 253VAC 50/60Hz
Maximum ambient temperature: +70°C
